Learning to draw with SwiftUI

I have zero knowledge in drawing shapes using SwiftUI. As a weekend practice session, I will try to learn how to draw an arrow.

After a few quick readings and research, I am going to use SwiftUI’s Path API. Apple’s Path tutorial is not helping though, it’s just too advance right off the bat. Why not start with a straight line?

Straight Line

Let’s draw a straight line in red.

import SwiftUI

struct MainView: View {

    var body: some View {
        NavigationStack {
            Path { path in
                path.move(to: CGPoint(x: 100, y: 120))
                path.addLine(to: CGPoint(x: 100, y: 400))
                path.closeSubpath()
            }
            .stroke(Color(.red), lineWidth: 3)
        }
    }
}

So far so good. Now, we need to center the line. Let’s wrap it in GeometryReader.

import SwiftUI

struct MainView: View {

    var body: some View {
        NavigationStack {
            GeometryReader { geometry in
                Path { path in
                    path.move(to: CGPoint(x: geometry.size.width / 2, y: 120))
                    path.addLine(to: CGPoint(x: geometry.size.width / 2, y: 400))
                    path.closeSubpath()
                }
                .stroke(Color(.red), lineWidth: 3)
            }
        }
    }
}

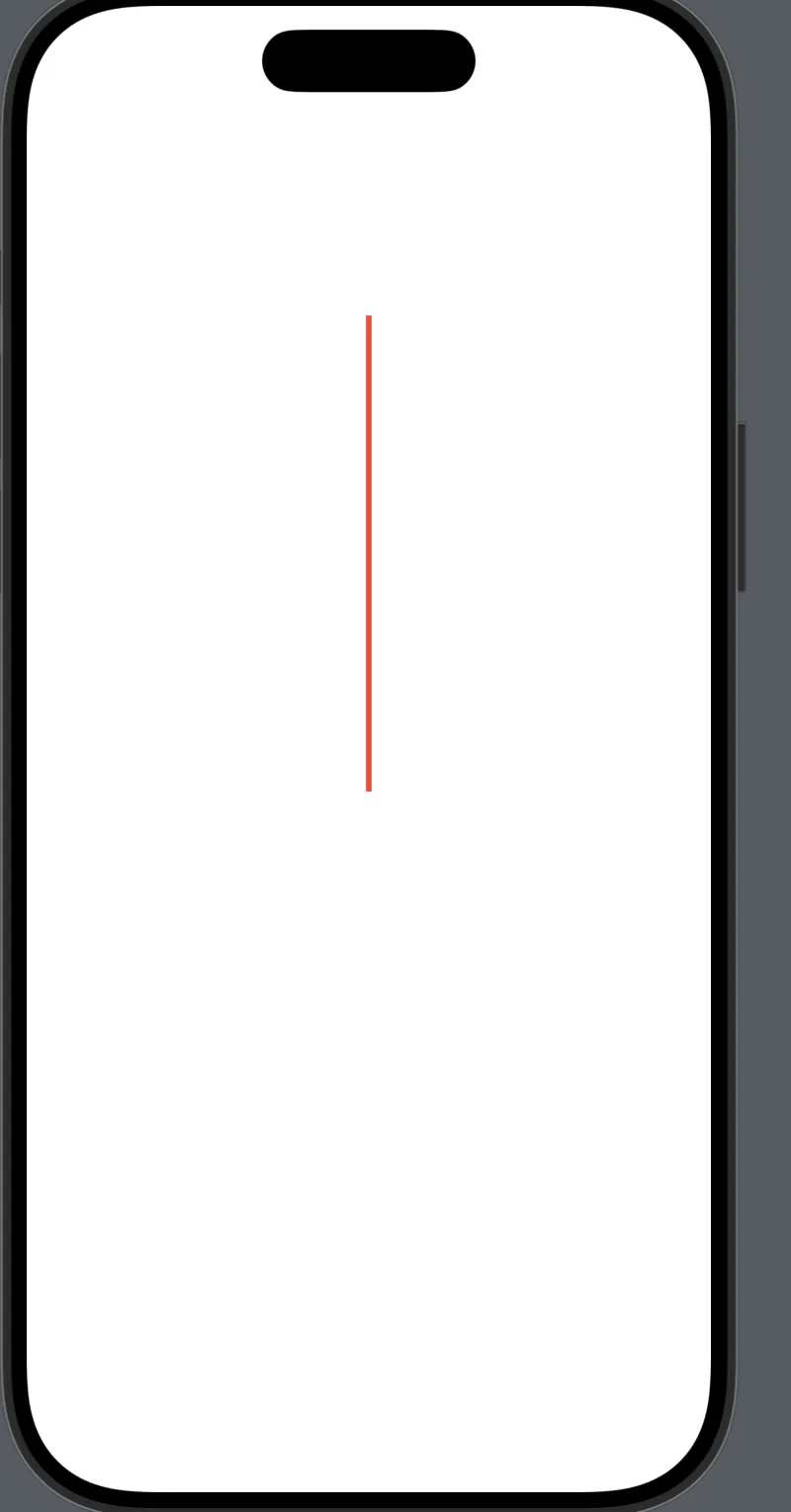

Screenshot 2025-03-03 at 10

Triangle

Next, we need a triangle on top of the line. After some trial and error, I managed to form an awkward triangle. More work to be done.

import SwiftUI

struct LaunchView: View {

    var body: some View {
        NavigationStack {
            GeometryReader { geometry in
                Path { path in
                    path.move(to: CGPoint(x: geometry.size.width / 2, y: 120))
                    path.addLine(to: CGPoint(x: geometry.size.width / 3, y: 150))
                    path.addLine(to: CGPoint(x: 300, y: 150))
                    path.closeSubpath()
                }
                .fill(Color(.red))
                Path { path in
                    path.move(to: CGPoint(x: geometry.size.width / 2, y: 120))
                    path.addLine(to: CGPoint(x: geometry.size.width / 2, y: 400))
                    path.closeSubpath()
                }
                .stroke(Color(.red), lineWidth: 3)
            }
        }
    }
}

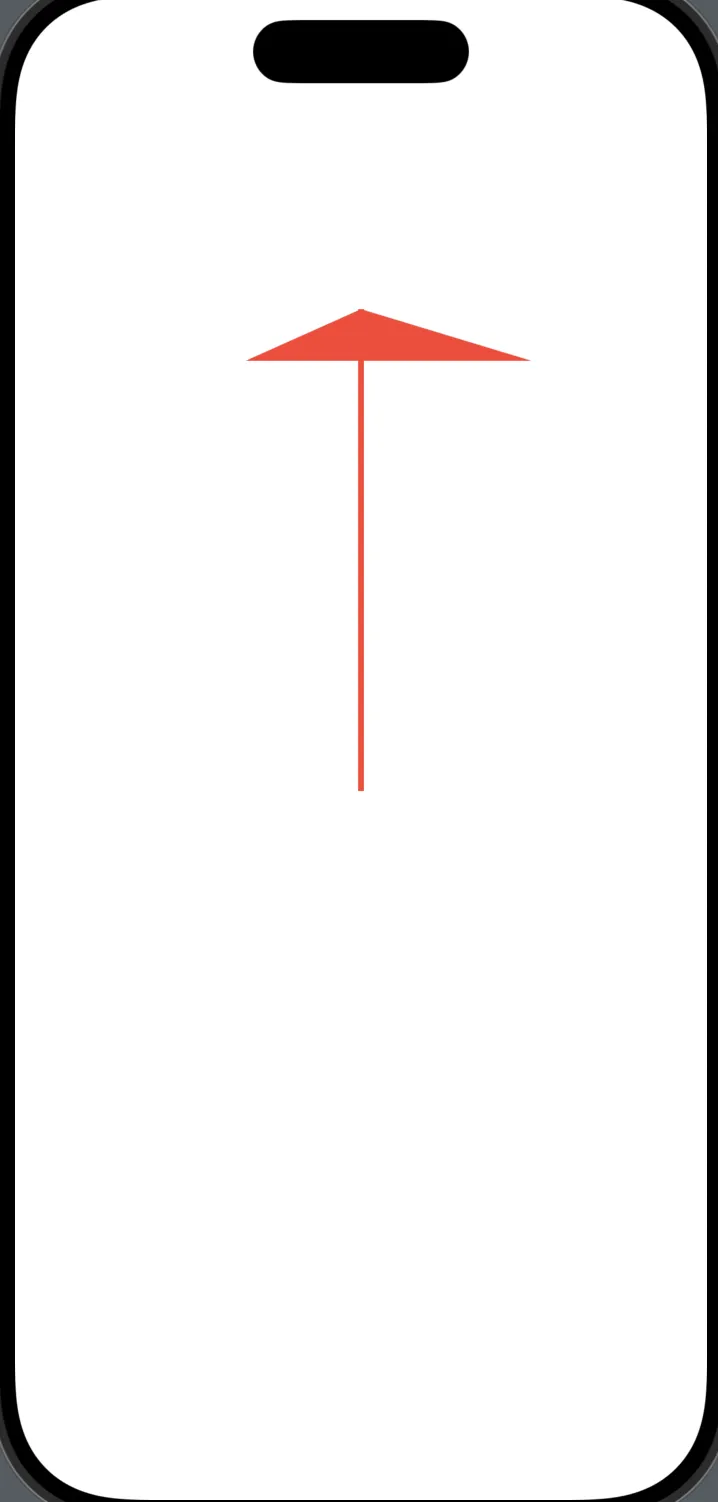

Screenshot 2025-03-03 at 10

Figure out the width

I know what's wrong with my triangle, the width is not consistent. Or the x value between the lines needs to be equal. Let's compute the geometry width and add 20 to one line, and subtract 20 to another line.

import SwiftUI

struct LaunchView: View {

    var body: some View {
        NavigationStack {
            GeometryReader { geometry in
                Path { path in
                    path.move(to: CGPoint(x: geometry.size.width / 2, y: 120))
                    path.addLine(to: CGPoint(x: geometry.size.width / 2 + 20, y: 140))
                    path.addLine(to: CGPoint(x: geometry.size.width / 2 - 20, y: 140))
                    path.closeSubpath()
                }
                .fill(Color(.red))
                Path { path in
                    path.move(to: CGPoint(x: geometry.size.width / 2, y: 120))
                    path.addLine(to: CGPoint(x: geometry.size.width / 2, y: 400))
                    path.closeSubpath()
                }
                .stroke(Color(.red), lineWidth: 3)
            }
        }
    }
}

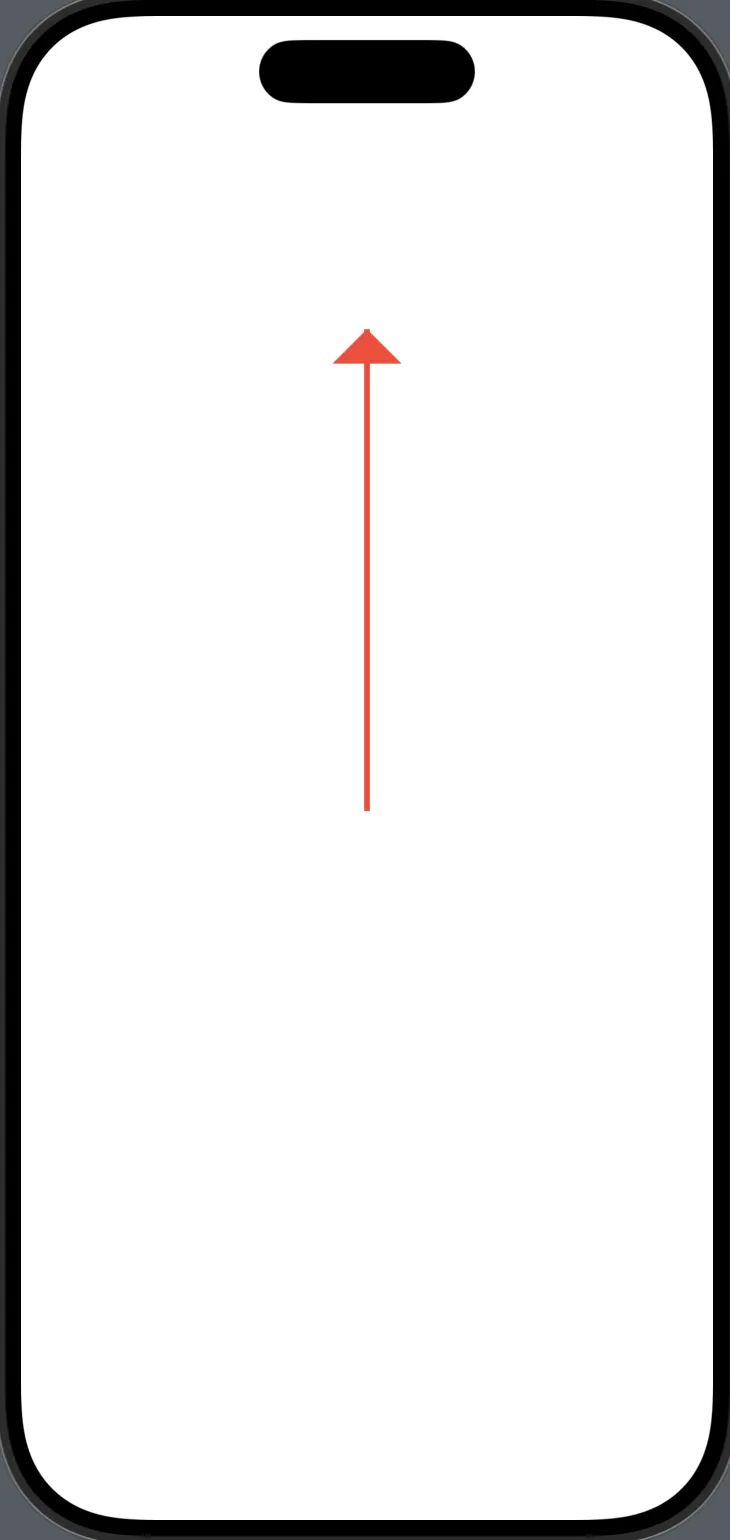

Boom! It worked!

Screenshot 2025-03-03 at 10

I guess the final task is to group the 2 path objects together. If it is even possible. I guess I am just going to create a separate view, and call it ArrowView.

import SwiftUI

struct ArrowView: View {
    var body: some View {
        GeometryReader { geometry in
            Path { path in
                path.move(to: CGPoint(x: geometry.size.width / 2, y: 120))
                path.addLine(to: CGPoint(x: geometry.size.width / 2 + 20, y: 140))
                path.addLine(to: CGPoint(x: geometry.size.width / 2 - 20, y: 140))
                path.closeSubpath()
            }
            .fill(Color(.red))
            Path { path in
                path.move(to: CGPoint(x: geometry.size.width / 2, y: 120))
                path.addLine(to: CGPoint(x: geometry.size.width / 2, y: 400))
                path.closeSubpath()
            }
            .stroke(Color(.red), lineWidth: 3)
        }
    }
}

In this way, I can reuse it like this.

import SwiftUI

struct MainView: View {

    var body: some View {
        NavigationStack {
            ArrowView()
        }
    }
}
